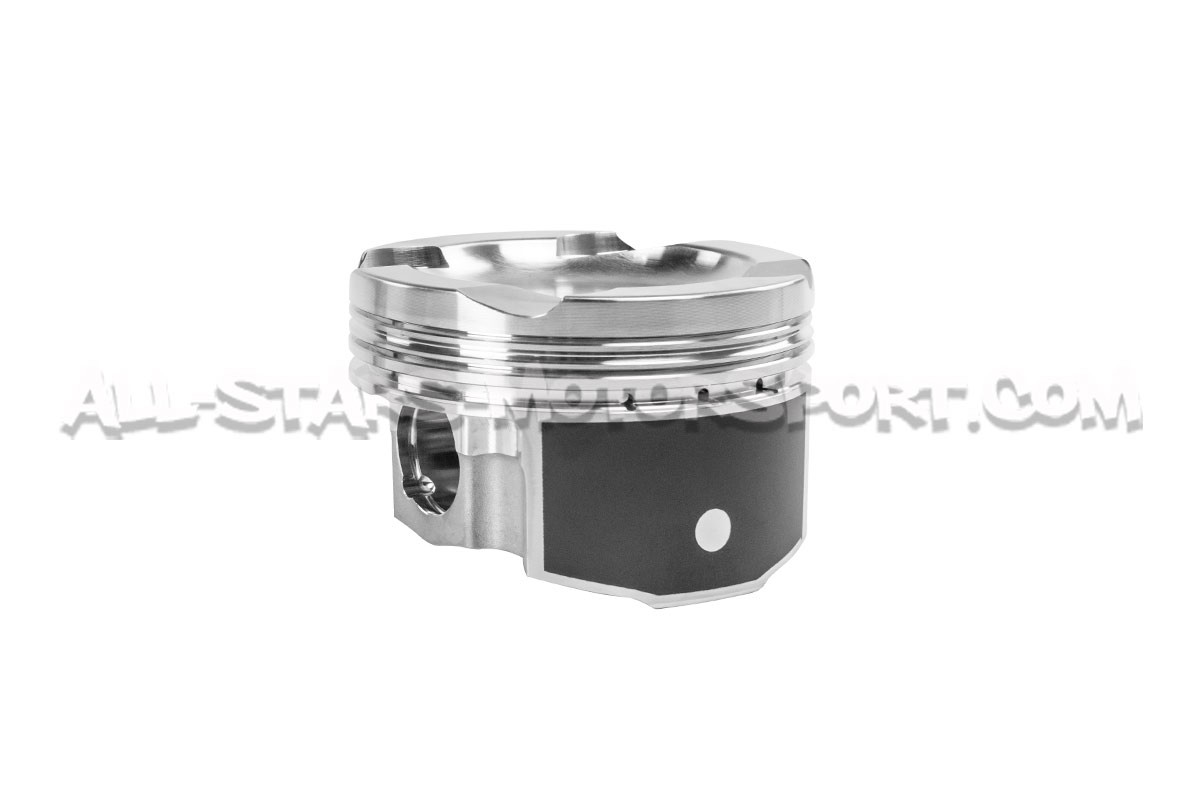

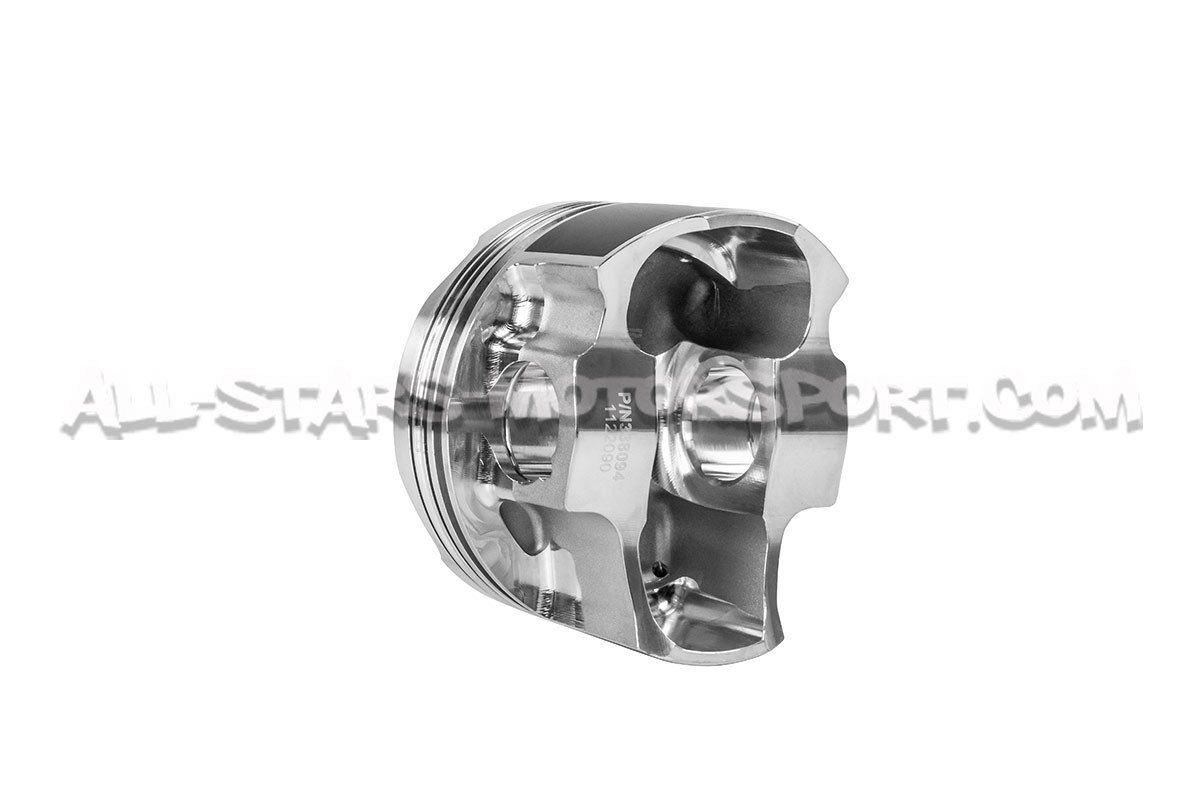

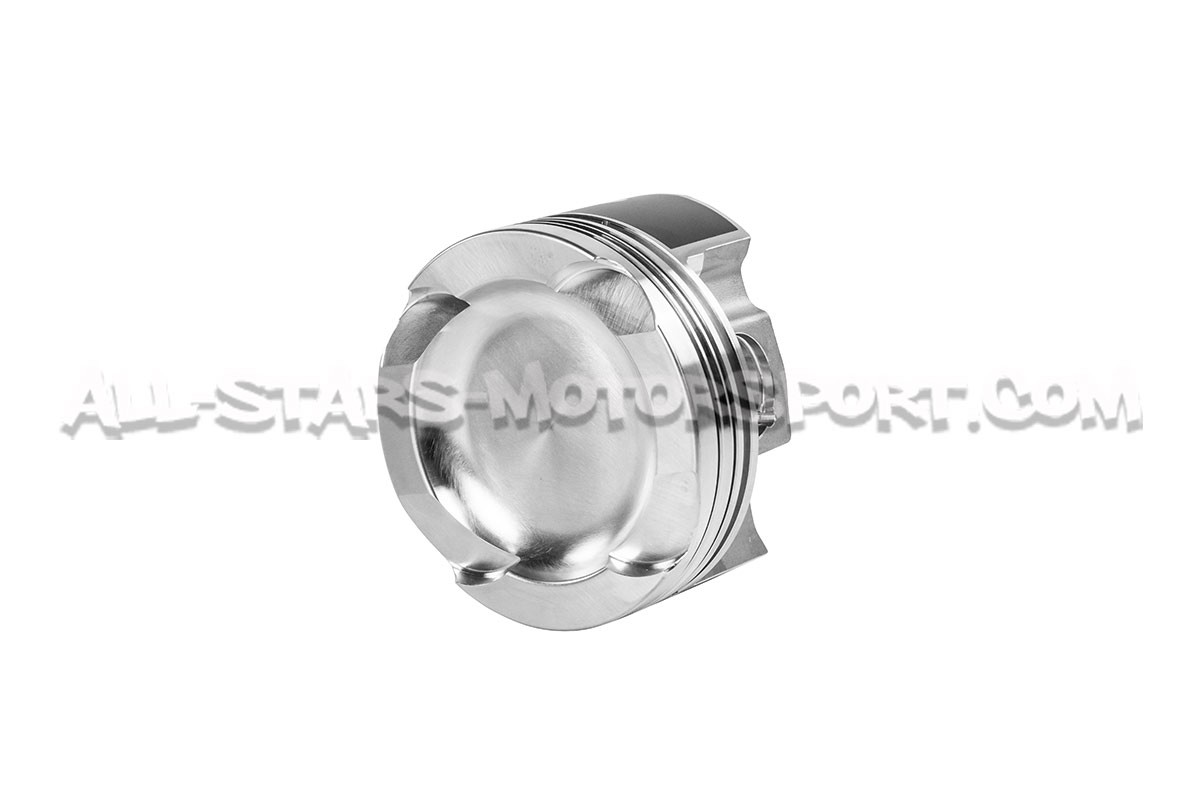

Made in the USA by JE Pistons from high strength 2618 aluminium, this 6 forged pistons kit for the N54 engines of the BMW 135i / 335i exists with 3 different bores : 84.0mm (OEM) or 84.5mm / 85.0mm (machined engine). Coming with locks, rings and fitting kit (compatible with 22mm pin pistons), these pistons, designed to withstand extreme powers, offer an original compression ratio.
- Select your bore -
Direct bolt on (22mm axis)

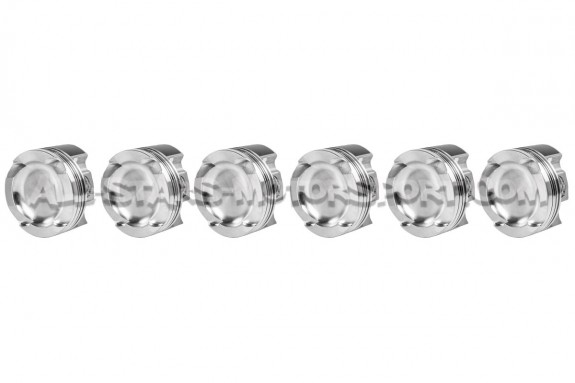

6 piece kit
2618 forged (FSR) aluminium alloy
Pin : 22mm
Bore : 84.0mm (OEM) or 84.5mm (+0.5) / 85.0mm (+1)
Compression ratio : 9.0:1

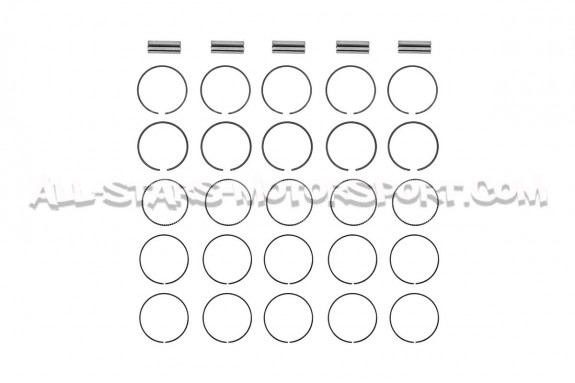

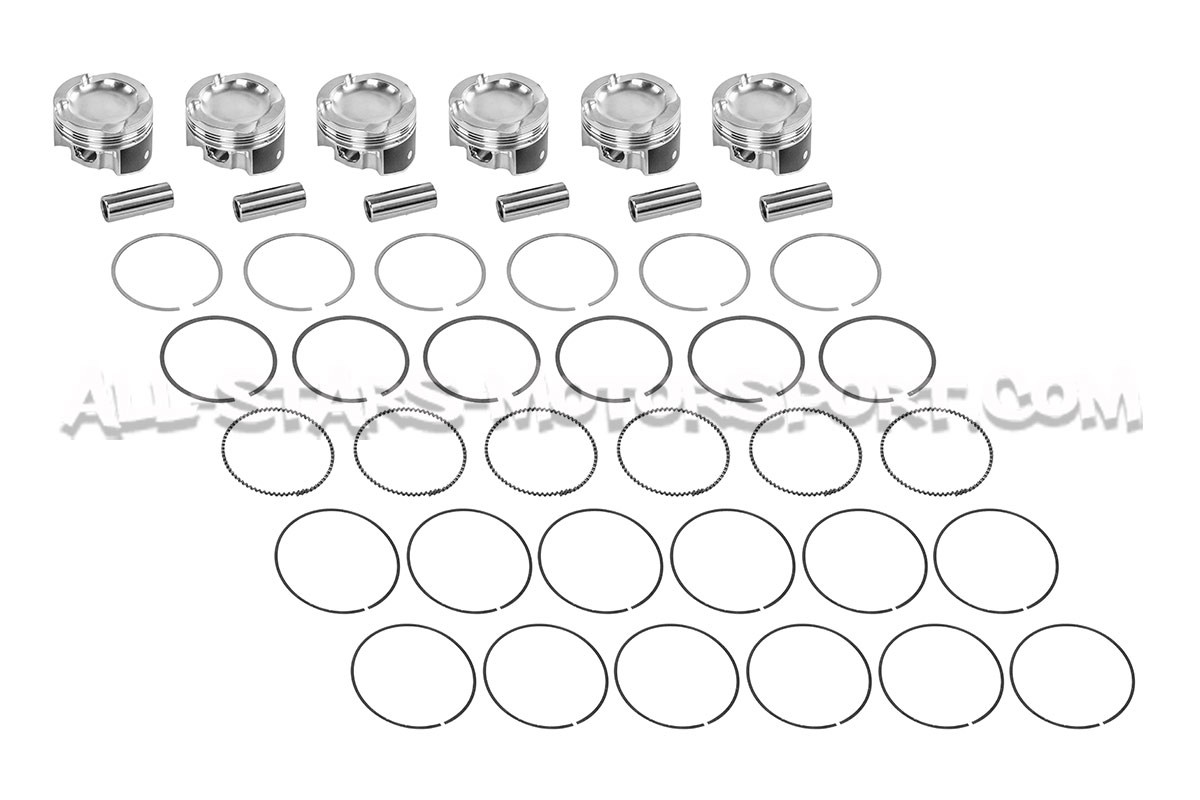

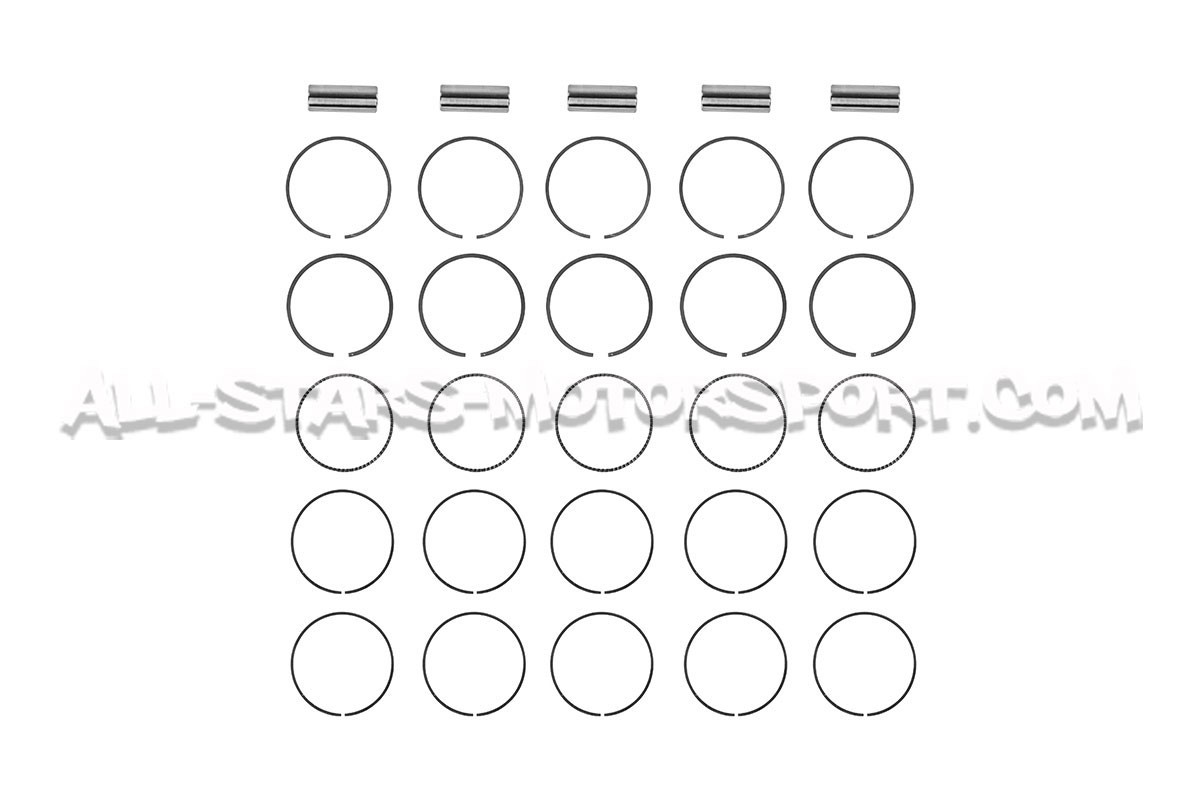

Proseal rings, locks and fitting kit included
Made in USA
| Brand | Model | Type | Version |
|---|---|---|---|
| BMW | 1 Series | E8x - 08-13 | 135i - 306 |
| BMW | 1 Series | E8x - 08-13 | 1M - 340 |
| BMW | 3 Series | E9x - 06-13 | 335i - 306 |
No reviews yet
*Write your comment here
Made in the USA by JE Pistons from high strength 2618 aluminium, this 6 forged pistons kit for the N54 engines of the BMW 135i / 335i exists with 3 different bores : 84.0mm (OEM) or 84.5mm / 85.0mm (machined engine). Coming with locks, rings and fitting kit (compatible with 22mm pin pistons), these pistons, designed to withstand extreme powers, offer an original compression ratio.
- Select your bore -
Direct bolt on (22mm axis)
6 piece kit
2618 forged (FSR) aluminium alloy
Pin : 22mm
Bore : 84.0mm (OEM) or 84.5mm (+0.5) / 85.0mm (+1)
Compression ratio : 9.0:1
Proseal rings, locks and fitting kit included
Made in USA
| Brand | Model | Type | Version |
|---|---|---|---|
| BMW | 1 Series | E8x - 08-13 | 135i - 306 |
| BMW | 1 Series | E8x - 08-13 | 1M - 340 |
| BMW | 3 Series | E9x - 06-13 | 335i - 306 |
- Further information -
Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.
