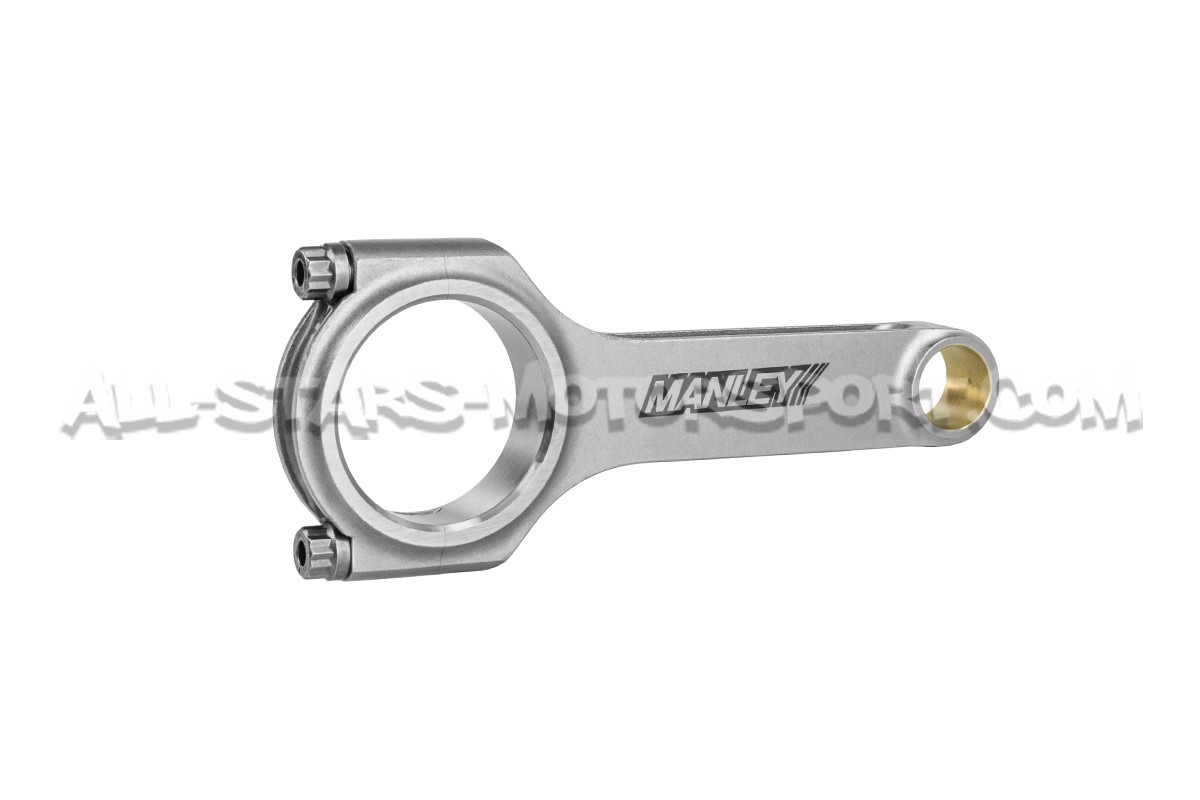

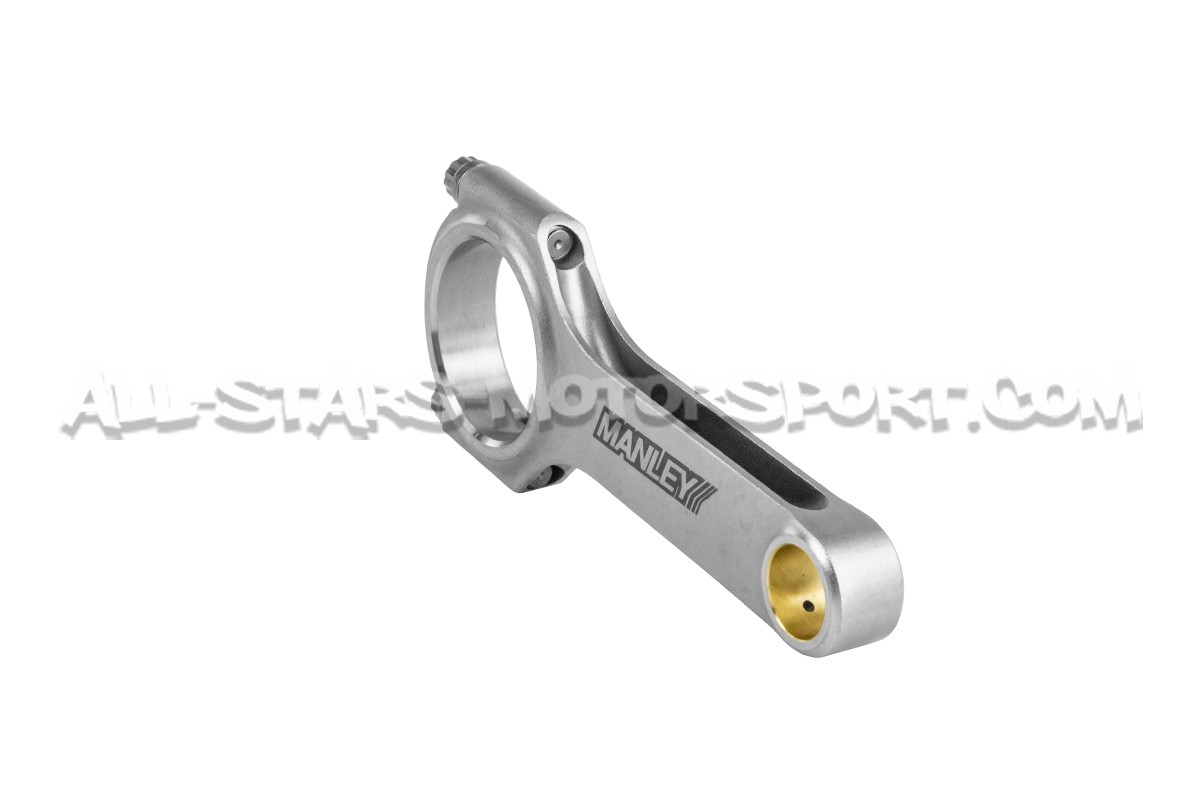

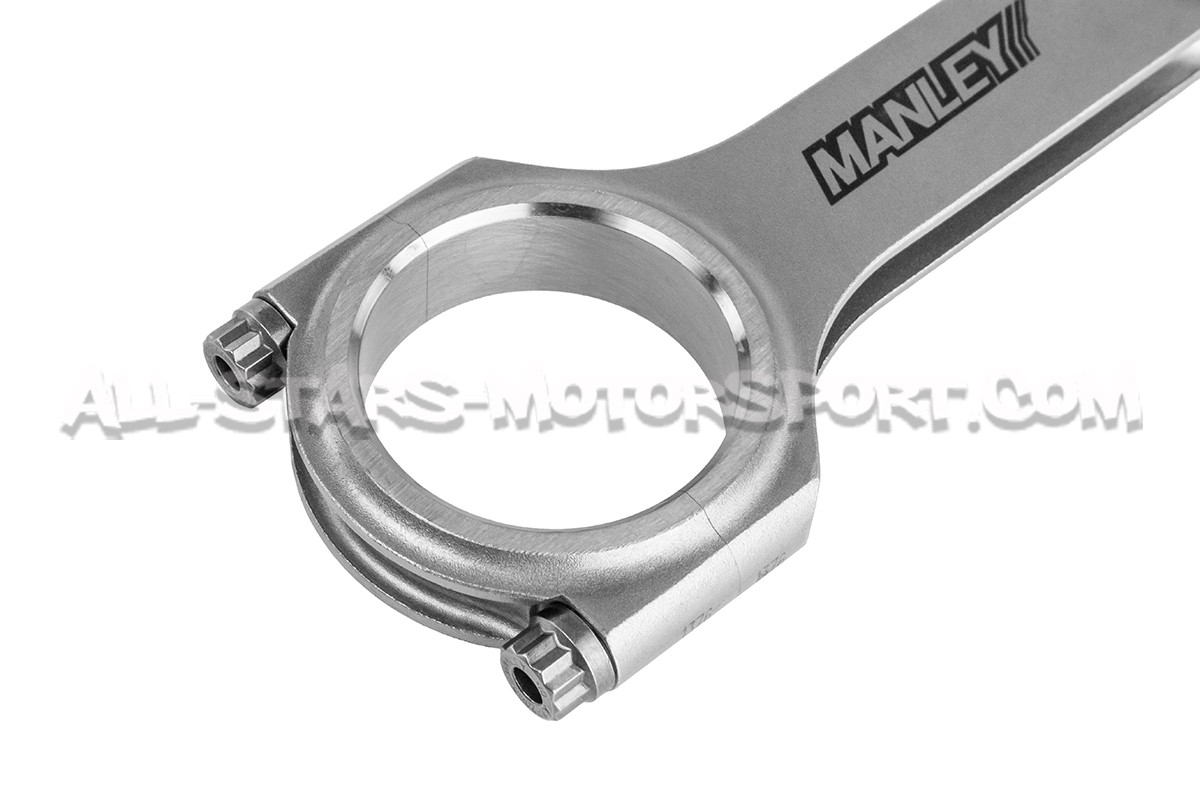

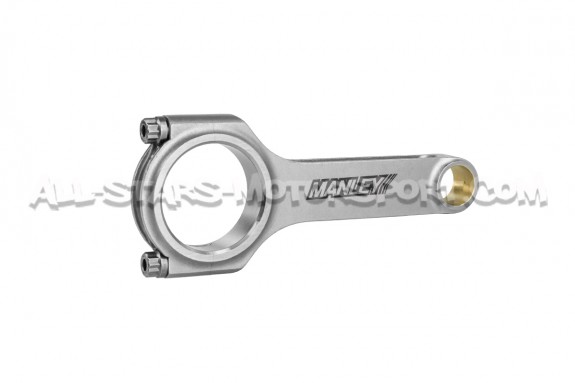

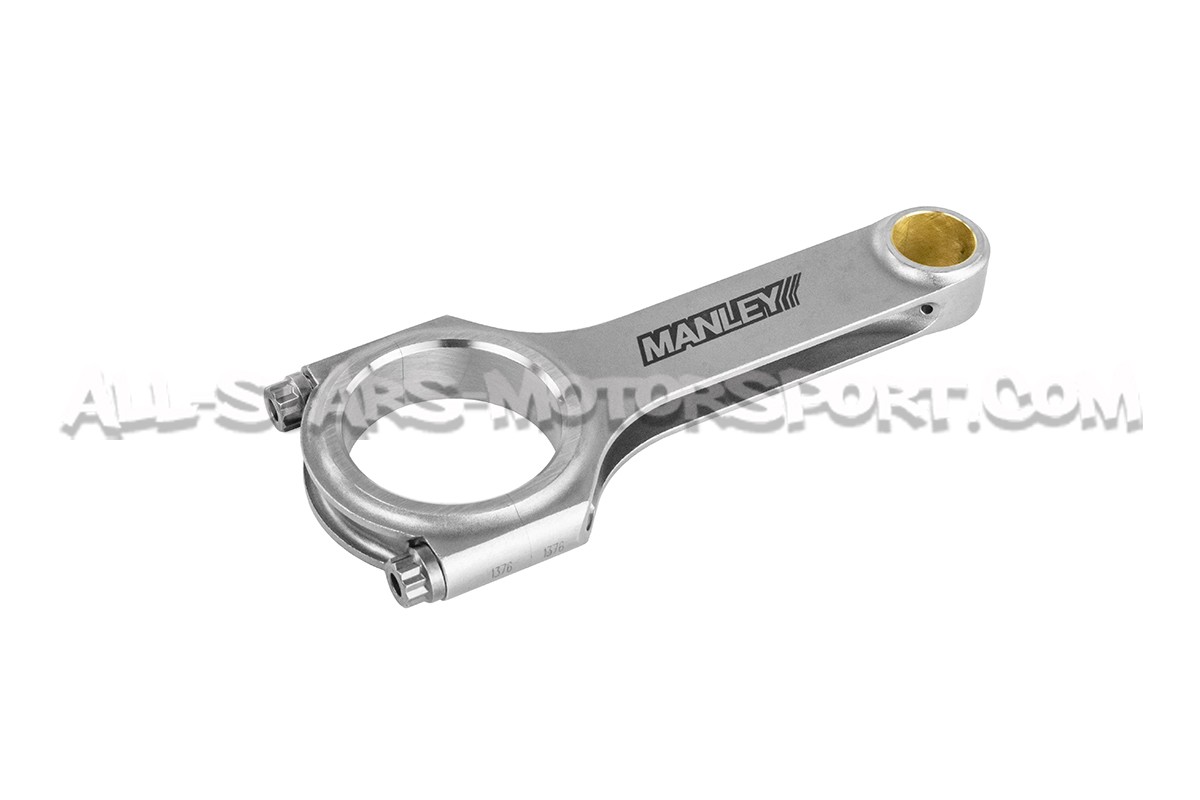

Made in the USA from high quality billet 4340 steel, these Manley Performance forged connecting rods (compatible with 22mm pin pistons) for the S55 engines of the BMW BMW M3 F80 / M4 F8x / M2C have an H-beam design with premium bronze wrist pin bushings and ARP200 bolts able to support up to 1200hp !
-
Direct bolt on (22mm axis)

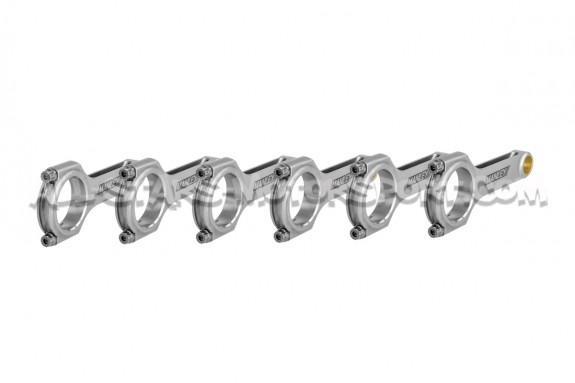

4 pieces kit
Billet 4340 steel H-beam design
Pin : 22mm
ARP 2000 rod bolts
Length 144.35mm - PE Width 22mm
Housing bore diameter 53.59mm
Weight 565 grs
Made in USA
| Brand | Model | Type | Version |
|---|---|---|---|
| BMW | 2 Series | Fxx -13-20 | M2C - 410 / 450 |
| BMW | 3 Series | Fxx - 13-19 | M3 - 431 / 450 / 460 |
| BMW | 4 Series | Fxx- 13-19 | M4 - 431 / 450 / 460 |
No reviews yet
*Write your comment here
Made in the USA from high quality billet 4340 steel, these Manley Performance forged connecting rods (compatible with 22mm pin pistons) for the S55 engines of the BMW BMW M3 F80 / M4 F8x / M2C have an H-beam design with premium bronze wrist pin bushings and ARP200 bolts able to support up to 1200hp !
-
Direct bolt on (22mm axis)
4 pieces kit
Billet 4340 steel H-beam design
Pin : 22mm
ARP 2000 rod bolts
Length 144.35mm - PE Width 22mm
Housing bore diameter 53.59mm
Weight 565 grs
Made in USA
| Brand | Model | Type | Version |
|---|---|---|---|
| BMW | 2 Series | Fxx -13-20 | M2C - 410 / 450 |
| BMW | 3 Series | Fxx - 13-19 | M3 - 431 / 450 / 460 |
| BMW | 4 Series | Fxx- 13-19 | M4 - 431 / 450 / 460 |
- Further information -
Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.
Content protected by copyright © 2026 - All rights reserved
The Manley Limited Warranty covers defects for 30 days after the original purchase by the end-user. It is not transferable and demands proper use; any failure voids the warranty. The warranty is exclusive, disclaiming all other warranties, and releases Manley from additional obligations or liabilities. If a product is believed to be defective, the original buyer must initiate a specific return process. If covered, Manley may repair, replace, or refund the product at their own discretion.
