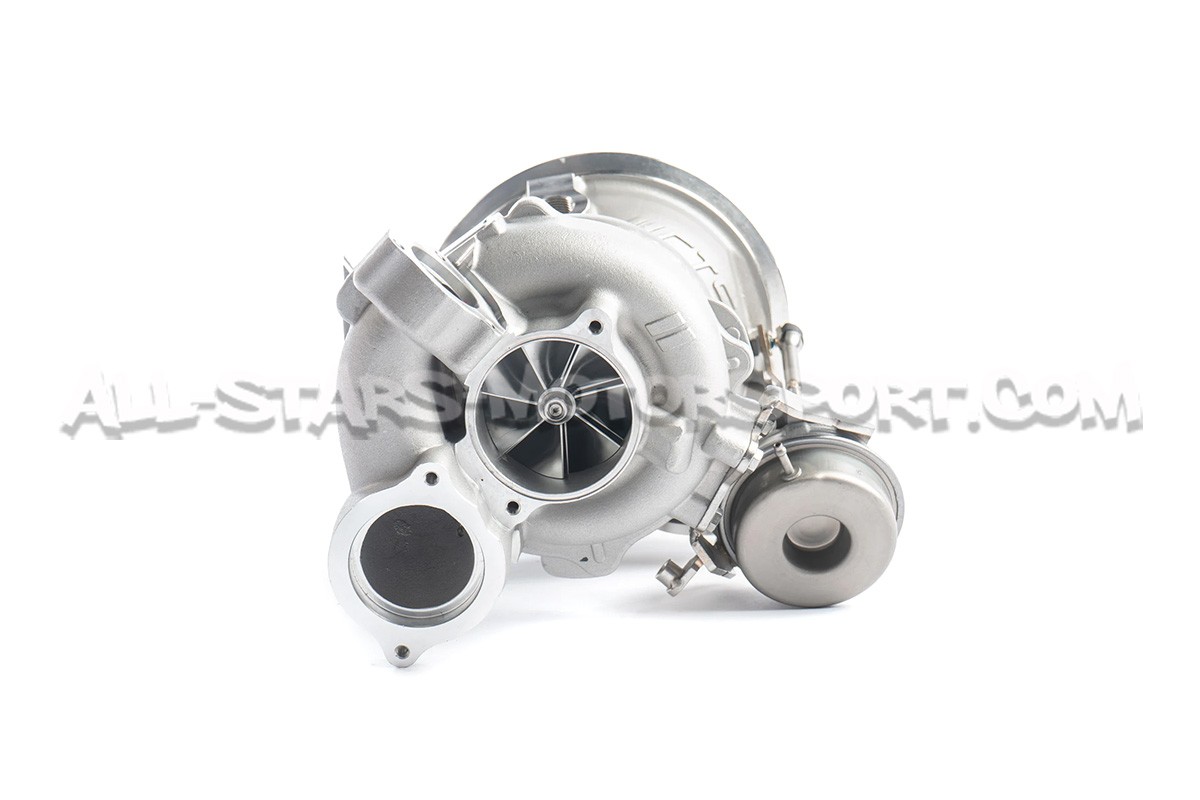

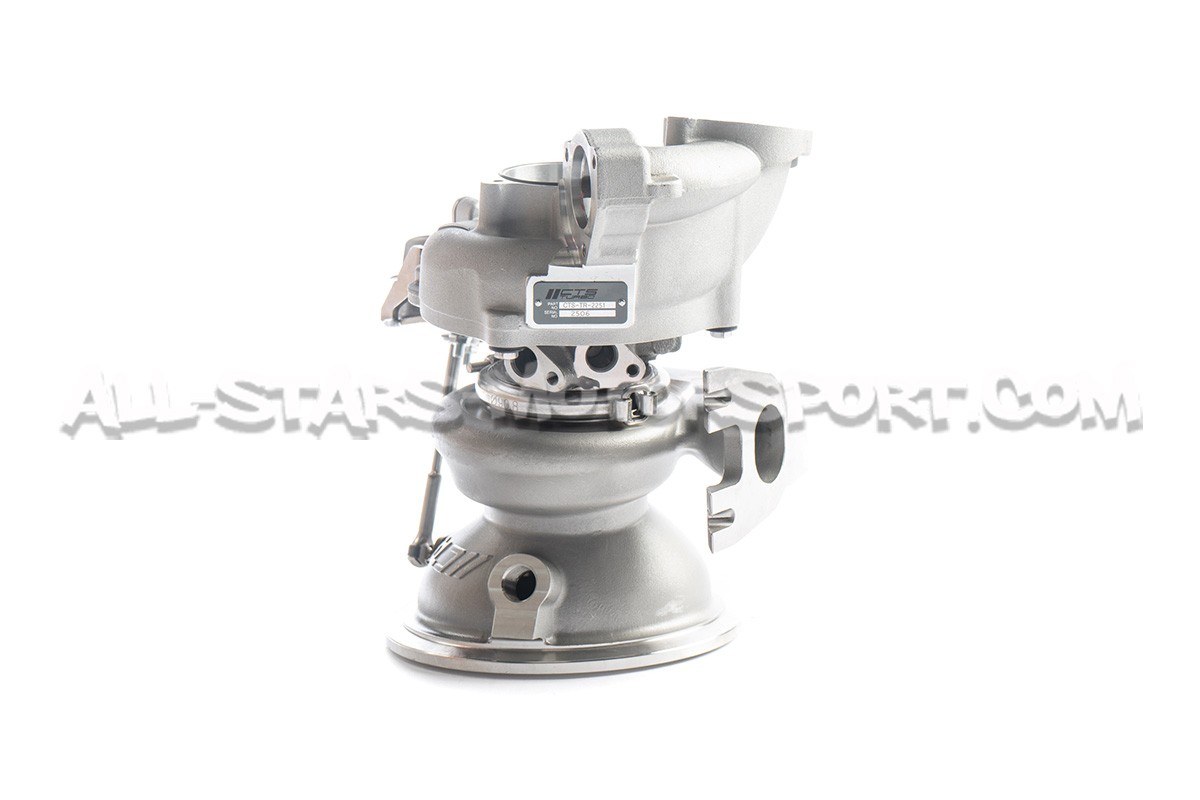

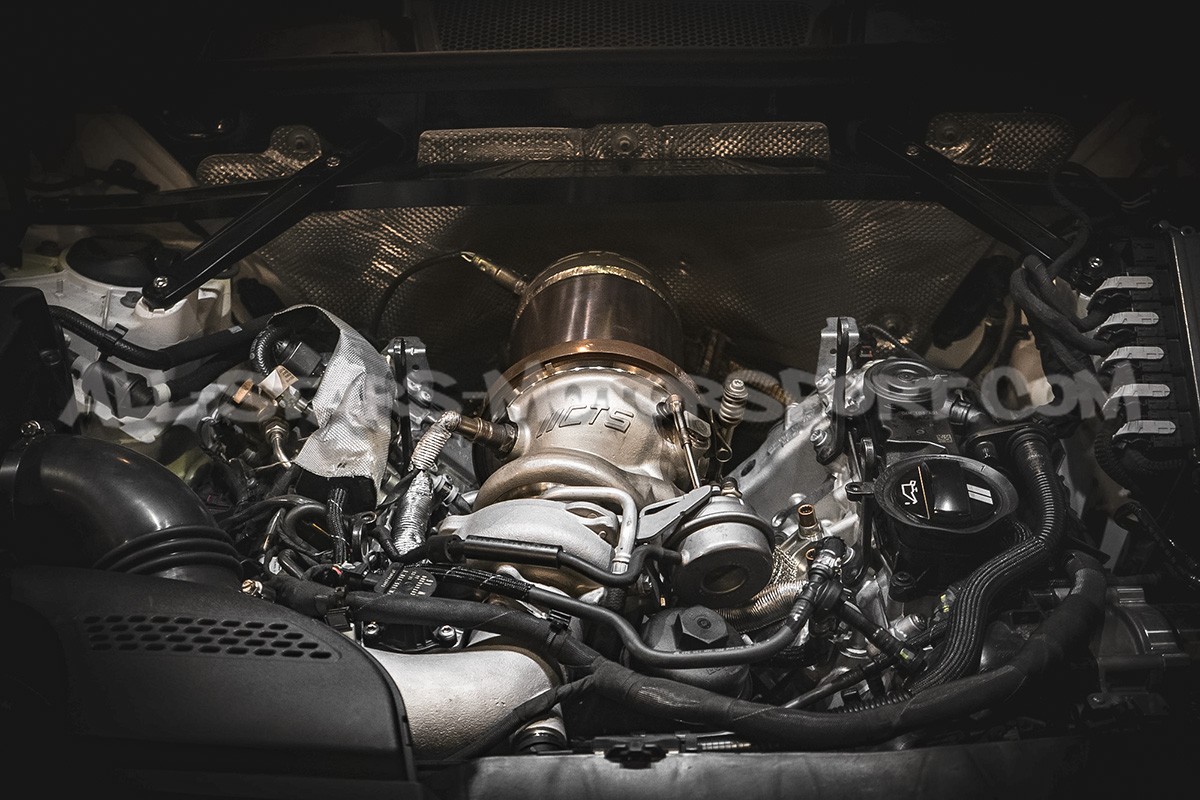

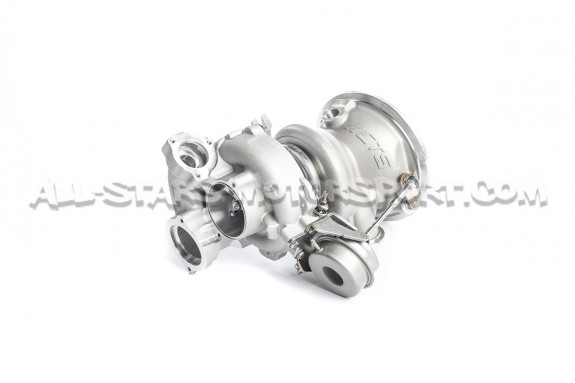

Direct replacement for the factory turbo fitted to the 3.0 TFSI EA839 engines found in the Audi S4 B9 and Audi S5 F5, this CTS Turbo Boss800 hybrid turbo is capable of producing up to 700hp (E85 + hard Stage 3). Offering a wide and well balanced operating range, this turbo is built around a 66mm 7+7 compressor wheel and a 63mm 9-blade turbine, mounted on high-performance bearings and integrated into a high-quality stainless steel housing.
-
Direct fit
Capable of producing up to 700hp
Large diameter inlet (66mm)
7+7 compressor wheel 66mm
9-blade 63mm turbine
High-performance bearings
High-flow stainless steel housing
Made in Canada
- Note -
66mm inlet pipe required
Installation hardware (gaskets, clamps, nuts, etc.) not included
| Brand | Model | Type | Version |
|---|---|---|---|
| Audi | S4 | B9 - 16-21 | 3.0 TFSI - 354 |
| Audi | S5 | F5 - 16-... | 3.0 TFSI 354 |
No reviews yet
*Write your comment here
Direct replacement for the factory turbo fitted to the 3.0 TFSI EA839 engines found in the Audi S4 B9 and Audi S5 F5, this CTS Turbo Boss800 hybrid turbo is capable of producing up to 700hp (E85 + hard Stage 3). Offering a wide and well balanced operating range, this turbo is built around a 66mm 7+7 compressor wheel and a 63mm 9-blade turbine, mounted on high-performance bearings and integrated into a high-quality stainless steel housing.
-
Direct fit
Capable of producing up to 700hp
Large diameter inlet (66mm)
7+7 compressor wheel 66mm
9-blade 63mm turbine
High-performance bearings
High-flow stainless steel housing
Made in Canada
- Note -
66mm inlet pipe required
Installation hardware (gaskets, clamps, nuts, etc.) not included
| Brand | Model | Type | Version |
|---|---|---|---|
| - Except special mention indicated on the product description - | |||
| Audi | S4 | B9 - 16-21 | 3.0 TFSI - 354 |
| Audi | S5 | F5 - 16-... | 3.0 TFSI 354 |
- Further information -
Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.
Content protected by copyright © 2026 - All rights reserved
Except turbochargers, fueling and electrical parts, CTS Turbo products are all convered by a 1 year manufacturer defect warranty that begins on the date of purchase. Turbochargers have a 6 months warranty and electrical / fueling components are totally exclude of the CTS Turbo warranty policy. Warranty doesn't cover abuse, physical damage, incorrect installation or misuse of a product. Warranty covers exclusively repairs or replacement of failed parts, at manufacturer's discretion. No refund or credit are allowed.
APR red coil packs for Audi S4 / RS4 B9 and S5 / RS5 F5 2.9 / 3.0 TFSI
CTS Turbo intake kit for Audi S4 / RS4 B9 and S5 / RS5...

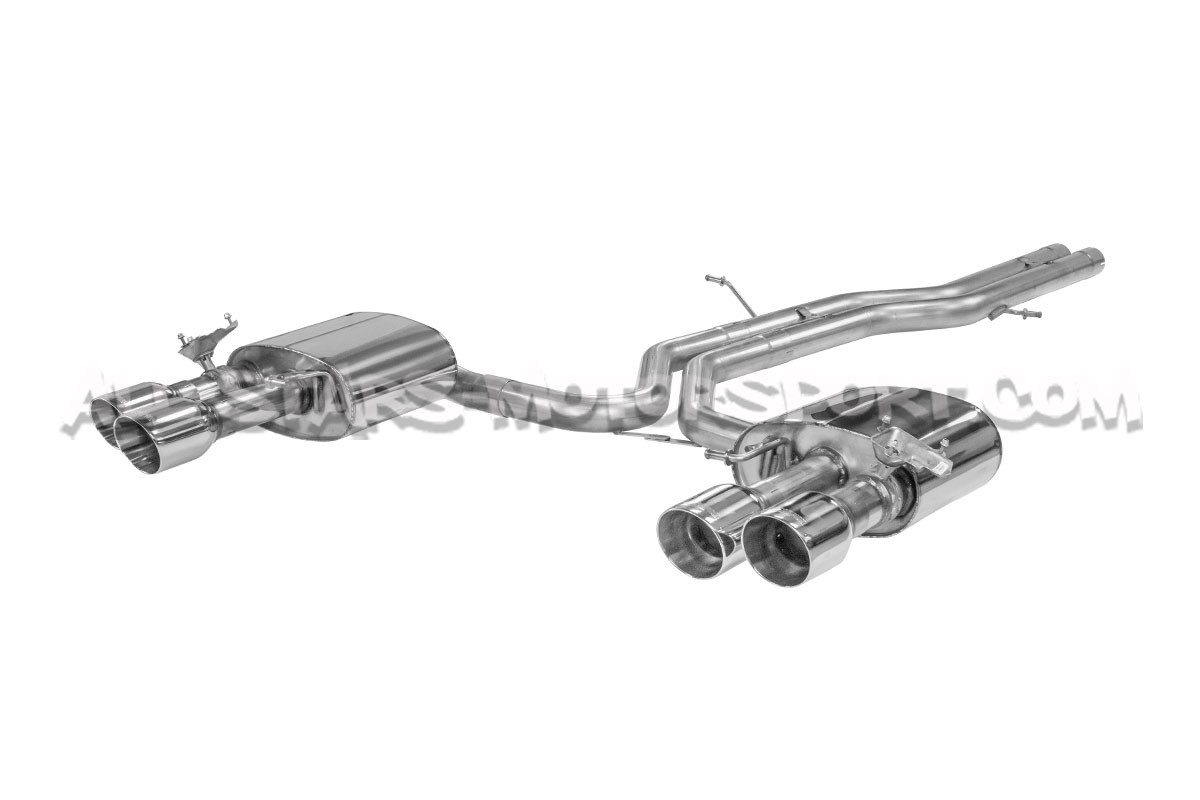

Audi S4 B9 Scorpion Half Exhaust System
